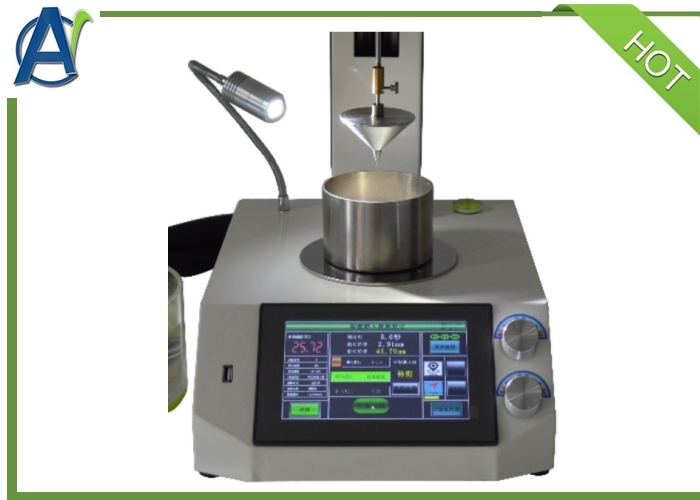

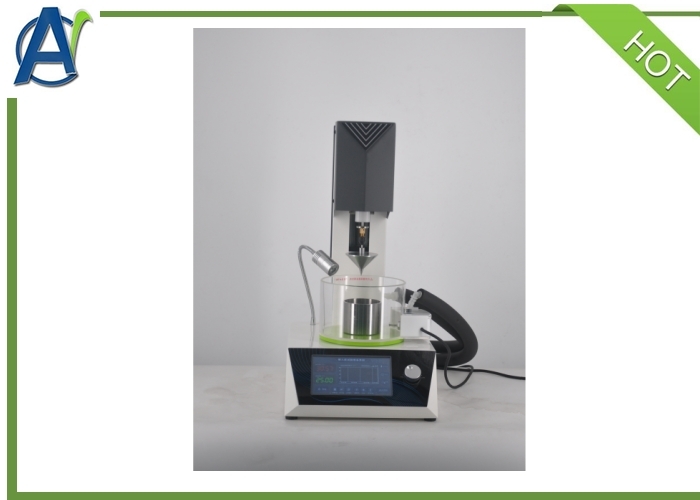

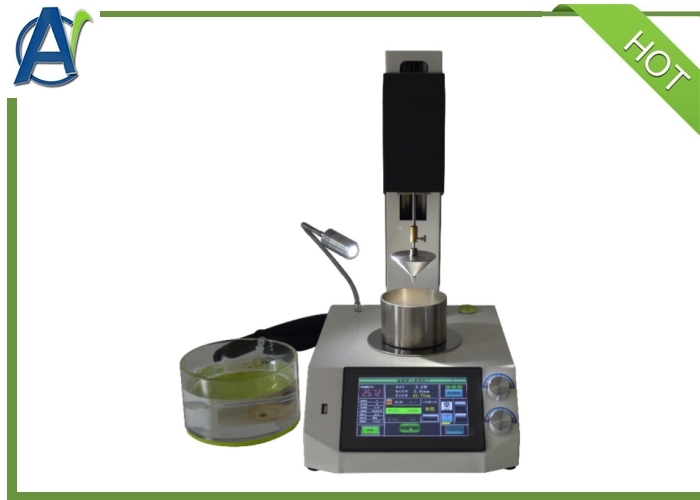

Automatic Grease Cone Penetrometer Compliant with ASTM D217, ISO 2137

Automatic Grease Cone Penetrometer

I. Introduction:

The automatic grease cone penetration tester is an innovative patented product with independent knowledge designed and manufactured in accordance with the technical requirements and relevant regulations of the China standard GB/T 269-91 Determination of Cone Penetration of Lubricating Grease and Petrol Grease, and with reference to the international standard ISO2137 Determination of Cone Penetration of Lubricating Grease and Petroleum.
This instrument is mainly suitable for measuring the consistency of lubricating grease and petroleum grease, and can also be used for measuring the consistency of oil wax that has not undergone sweating and deoiling; This instrument also conforms to the testing performance specified in GB1790-2003 Pharmaceutical Vaseline. It is widely
used to measure the hardness and softness of lubricating grease, Vaseline, pharmaceutical Salve products or other semi-solid substances, and plays an important role in the process of design, quality control, and identification of product characteristics.

II. Main Features

1.  Touch HMI with Animation Simulation
   Equipped with animated simulation for real working conditions and touch operation. The human-machine interface is intuitive and easy to operate.
2. Integrated Constant Temperature Water Bath
   Built-in water bath with heating and refrigeration functions, temperature control accuracy up to ±0.5℃.
3. Fast Cone Tip Positioning
   Adopts stepping motor for fast lifting & lowering, plus encoder for coarse and fine adjustment. It supports position memory and automatic cone tip positioning.
4.  Automatic Test Calculation
   Automatically records data and calculates the average cone penetration value upon completion of all tests.
5. Automatic Cone Lifting
   Unique design enables the cone assembly to be automatically gripped and lifted after each test.
6.  Powerful Data Processing
   Stores up to 200 sets of test data and curves; supports U data export; equipped with 485 interface and ModBus protocol.
7.  Comprehensive Help System
   Provides graphic & text prompts for installation, operation, verification, calibration, maintenance and fault diagnosis.
8. Optional: Circulating Water Bath

III. Specifications:

FAQ

1. What's the delivery time?

   About 30days.

2. What's your payment terms?

   30% paid by T/T in advance,70% paid by by T/T before shipping.

3. What's your guarantee terms?

   The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4. Can you supply training?

   We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
