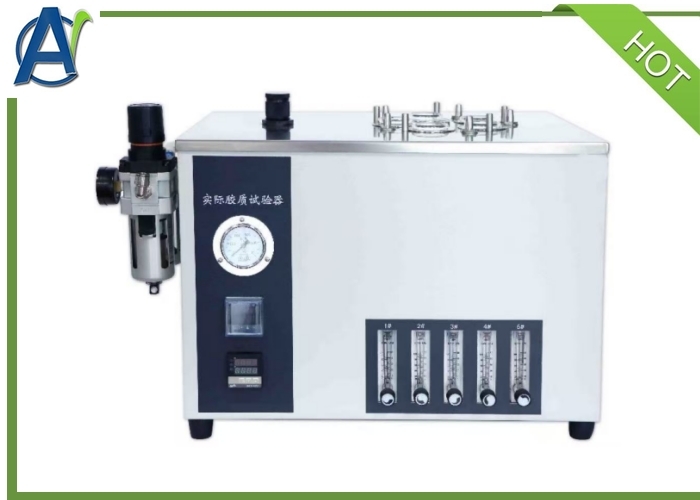

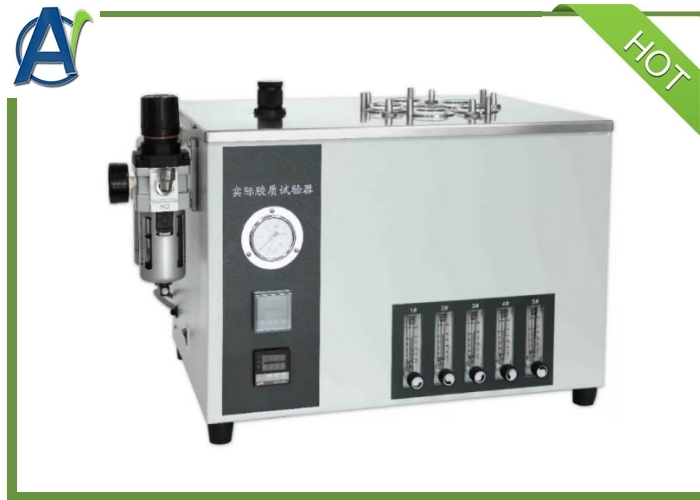

ASTM D381 Petroleum Products Existent Gum Content Tester

ASTM D381 Petroleum Products Existent Gum Content Tester
ASTM D381 Petroleum Products Existent Gum Content Tester ASTM D381 Petroleum Products Existent Gum Content Tester ASTM D381 Petroleum Products Existent Gum Content Tester ASTM D381 Petroleum Products Existent Gum Content Tester ASTM D381 Petroleum Products Existent Gum Content Tester ASTM D381 Petroleum Products Existent Gum Content Tester ASTM D381 Petroleum Products Existent Gum Content Tester ASTM D381 Petroleum Products Existent Gum Content Tester ASTM D381 Petroleum Products Existent Gum Content Tester ASTM D381 Petroleum Products Existent Gum Content Tester ASTM D381 Petroleum Products Existent Gum Content Tester ASTM D381 Petroleum Products Existent Gum Content Tester
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: Advanced Instruments
Orzecznictwo: ASTM D381

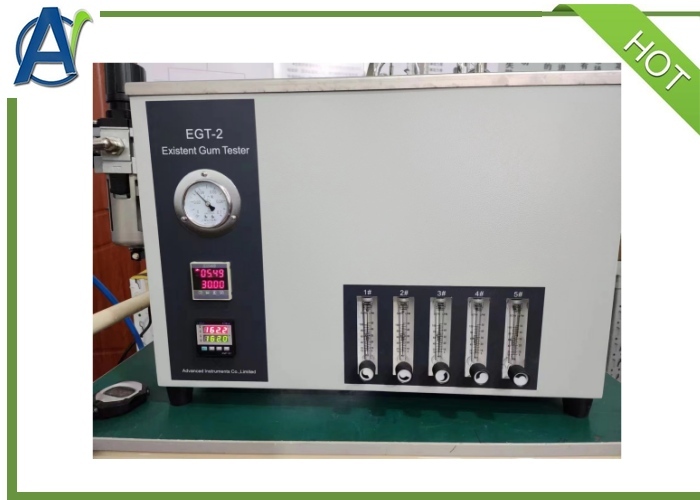

Numer modelu: EGT-2
Minimalne zamówienie: 1 zestaw
Cena: US$3000-4000/set
Szczegóły pakowania: Obudowa ze sklejki
Czas dostawy: 15 dni
Zasady płatności: T/T, L/C, D/P.
Możliwość Supply: 50 zestawów miesięcznie
Najlepsza cena Skontaktuj się teraz
Standard testowy: ASTM D1319 Zasilanie: AC220 V±10%, 50 Hz
Maksymalne zużycie energii: 3500 W. Kąpiel parowa: Aluminiowy blok wannowy φ260mm×130mm
Wibrator elektryczny: Kontroluj odpowiednio dwa podsystemy Sprawdź liczbę otworów: 5
Sprawdź rozmiar otworu: φ51mm×70mm Temperatura pracy: 160 ~ 165 ℃
Ciśnienie robocze zaworu redukcyjnego powietrza: 00,07Mpa Wilgotność względna: ≤85%
Szybkość przepływu powietrza: (600±90) ml/s
Podkreślić:

ASTM D381

,

Petroleum Existent Gum Analyzer

,

Gasoline Existent Gum Test Equipment

Purpose and scope

The Petroleum Products Existent Gum Content Tester is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381 Standard test method for gum content in fuels by jet evaporation. It is suitable to determine the existent gum content of aviation gasoline and motor gasoline(Not suitable to determine the existent gum content of aviation turbine fuel).



Product Advantages
1.The metal bath heating system is adopted, which has the characteristics of fast heating speed, uniform bath temperature, safety and reliability.

2.This Petroleum Existent Gum Analyzer is designed with 5 independent test holes, which can not only test 5 specimens at the same time, but also test 1~4 specimens, with high testing efficiency, easy and flexible use, and can meet the test requirements of different users.

3.Each test hole is equipped with an independent flow meter, which can independently adjust the hot air flow rate of each test hole, and the hot air flow control is accurate and reliable.

4.This Petroleum Existent Gum Apparaus adopts digital temperature controller, with PID self-tuning function, and has high temperature control accuracy.

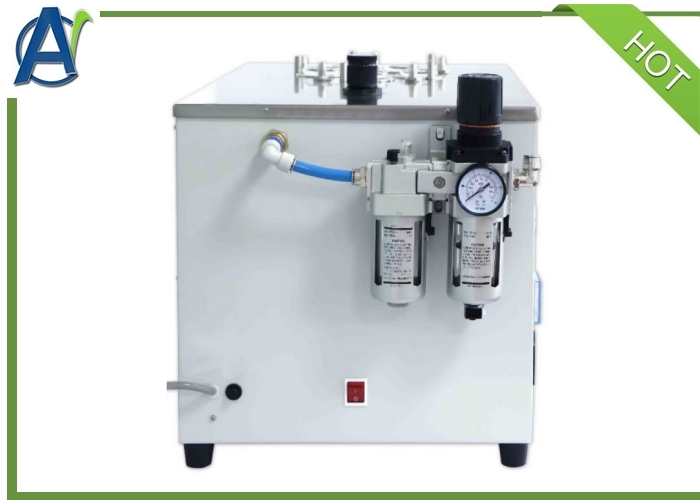

5.The Existent Gum Testing instrument is equipped with an oil-water separator to prevent oil, gas and water vapor from entering the instrument.

6.Optional oil-free silent air compressor to meet the requirements of standard experiments.

ASTM D381 Petroleum Products Existent Gum Content Tester 0


The Technical Specifications and Parameters



Operating Power supply
AC220V±10%, 50Hz
The whole power consumption
3500W
Evaporative bath
Aluminum bath block φ260mm×130mm (diameter × height)
Test the number of holes
5
Test hole size
φ51mm×70mm (inner diameter× depth)
Operating temperature
160~165℃
Air reducing valve working pressure
0.07MPa
Air flow rate at the outlet of the nozzle
(600±90)mL/s per well at room temperature and pressure
Applicable environment Temperature: 15°C~35°C, Relative Humidity: ≤85%
Dimensions 590mm×480mm×340mm



ASTM D381 Petroleum Products Existent Gum Content Tester 1



FAQ

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
