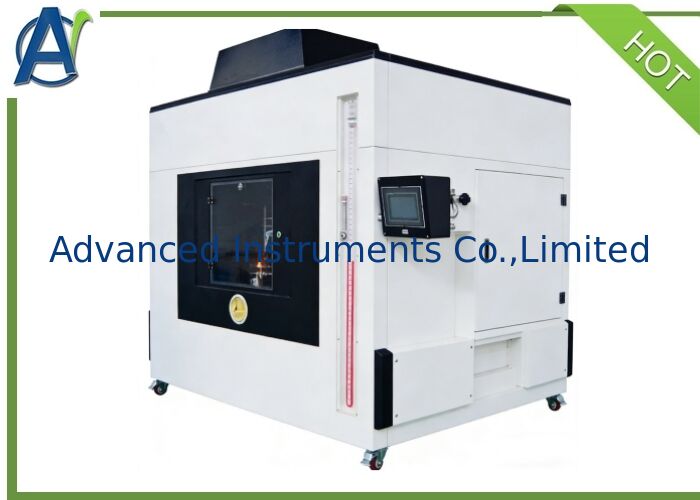

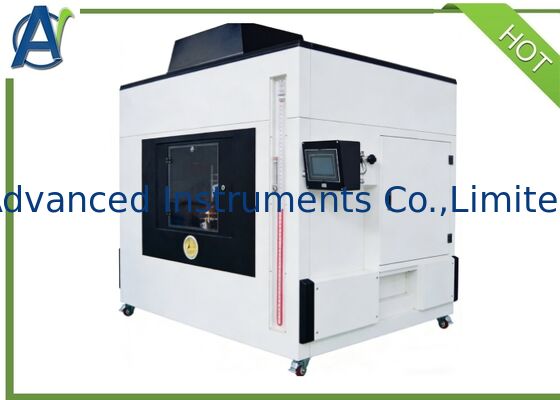

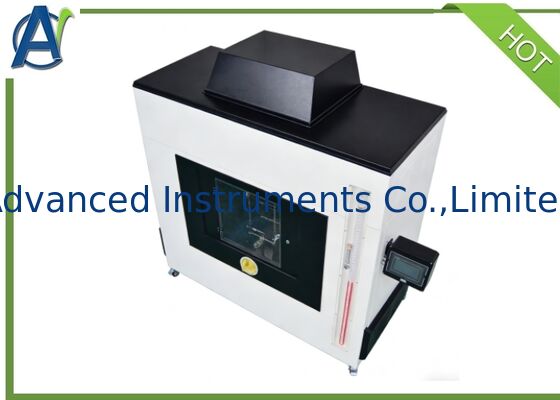

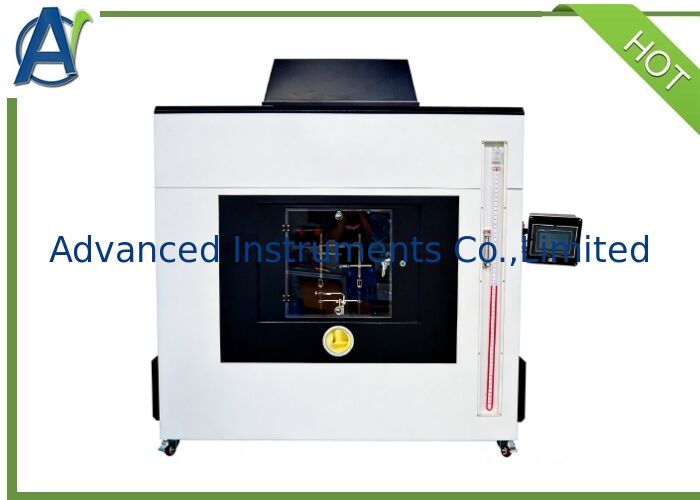

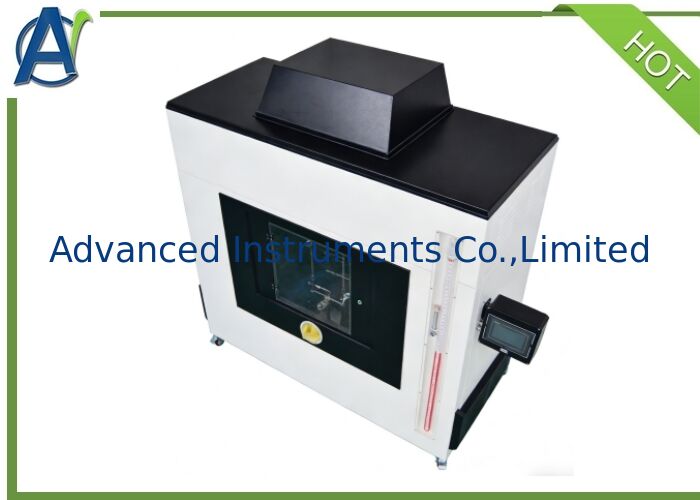

UL1581 High Precision VW-1 (Vertical Specimen) Burning Test Machine for Wire and Cable

VW-1 (Vertical-specimen) Flame Tester is designed in accordance with UL1581 and approved by Guangzhou Meihua UL corporation,completely in line with W.1 fame test standard, is used for test of W.1 and FT.2. it's economic and applicable, which is widely used inwire and cable industry. The test is taken in a sealing laboratory which volume is 4.32 cubic meters. Test methods: Adjust the height ofthe flame, put the top of the fame under the sample to burn for 15s, then put out for 15s. Examine the sample' burning situation afterrepeating 5 times. You can set the burning, go out time and times of repetition freely and make it operate automatically.

1.2 Related standards

• UL1581
• UL2556-2013
• ASTM D5025-99

1. Test chamber: This testing machine is made of steel plate splicing, the fuselage is anti-static spraying, with beautiful appearance, anti-rust and anti-corrosion characteristics.There's a fume extractor on the top, so that the waste gas can bereleased when the test is completed, and there are two air inlets on bothsides of the lower side and a set of pneumatic seal operation device;
2. There is an observation window on the front of the box to facilitate the observation of the test situation;
3. The interior is illuminated by anti-fog and smoke-proof round lights;
4. Adopt 7"color touch screen and PLC control.
5. Flame time setting: 0~999S adjustable
6. Ignition stop time setting: 0~999S adjustable
7. Continuous Ignition time setting: 0~999s, settable.
8. Heat sensor adopts high rates of electrolytic copper.Equipped with imported 0.5mm K-type stainless steel jacket temperature sensor.
9. Convenient intelligent temperature controller with K-type thermocouple matching, readings up to 1000°C or more.
10. With the function of high-pressure auto ignition
11. Blowtorch: imported from USA HUMBOLDT, applying with the requirements of ASTM D 5025-99, standard power: 500W, angle: 20°

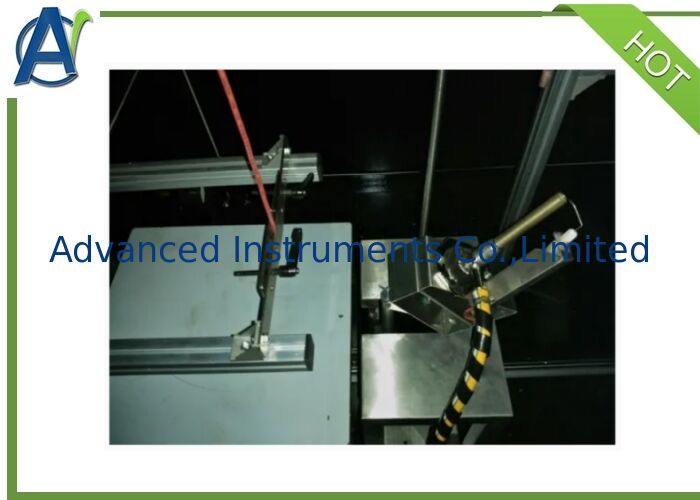

12. Test bracket: VW-1 and FT2 flame test bracket.
13. "U" type tube pressure meter: 1 (imported from American Dwyer)
14. Flowmeter: High precision flow meter 0.1-1.0L/min, level 2 accuracy
15. Equipped with a micro-printer.

• Demensions of Test chamber : 2m(W)x1.2m(D)x1.8m(H)
• Overall Demensions:2020mm(W)x1250mm(D)x2365mm(H)
• Power Supply:AC220V 50/60HZ 5A
• Air source: Methane,compressed air(provided by the customer)
