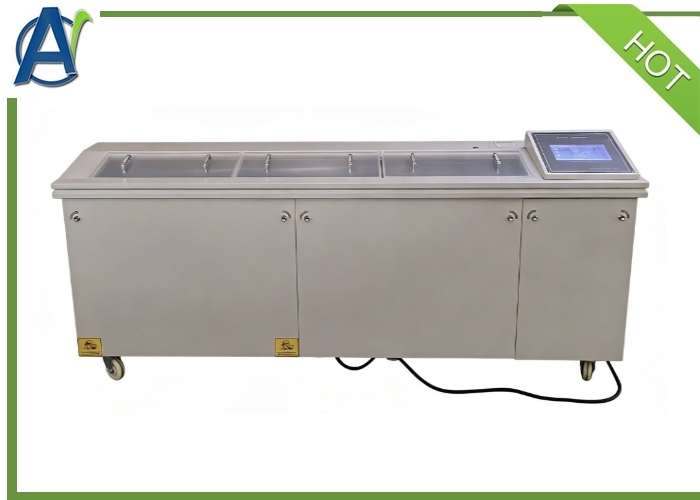

ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering

ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering
ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: Advanced Instruments
Orzecznictwo: ASTM D113
Numer modelu: DT-113
Minimalne zamówienie: 1 zestaw
Cena: US$5000-10000/set
Szczegóły pakowania: obudowa ze sklejki
Czas dostawy: 20 dni
Zasady płatności: T/T, L/C, D/P.
Możliwość Supply: 20 zestawów miesięcznie
Najlepsza cena Skontaktuj się teraz
Standard testowy: ASTM D113 Gwarancja: 1 pełny rok
Pakiet Transportowy: obudowa ze sklejki Znak rozpoznawczy: Zaawansowane instrumenty
Zasilanie operacyjne: AC220 V±10 V, 50 Hz Całkowite zużycie energii: ≤5600 W
Pomiar odległości: 1,5 m (± 10 mm) Tryb ogrzewania: Grzejnik elektryczny
Dokładność kontroli temperatury: ± 0,1 ℃ Szybkość rozciągania: 10 mm/min i 50 mm/min
Dokładność pomiaru: ± 1 mm Wyświetlacz ciągliwości: Wyświetlanie w czasie rzeczywistym
Podkreślić:

ASTM D113

,

Asphalt Ductility Apparatus

,

Bitumen Ductility Testing Machine

General Introduction

This Bitumen Ductility Machine is designed and made as per national standard GB/T 4508-2010 Standard Test Method for Ductility of Bitumen and T0602-2011 Asphalt Ductility Test in JTG E20-2011 in the Industrial Standard of People's Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D113 Standard Test Method for Ductility of Bituminous Materials. It is suitable to determine the distance to which it will elongate before breaking when two ends of a briquette specimen of the material are pulled apart at a specified speed and at a specified temperature.

Main technical features

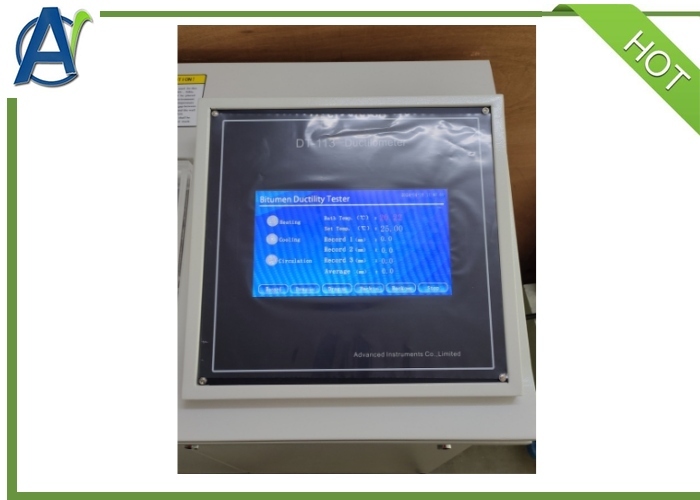

  1. 10.1 inch 1024×600 coloured touch screen.
  2. Full touch screen operation, convenient and fast.
  3. High power compressor is adopted for refrigeration, with fast refrigeration speed.
  4. 32-bit ARM microcontroller control, automatic display ductility data.
  5. Shield type cold heat balance pressurization cycle system, to ensure the temperature in the bath is uniform.
  6. Automatically detect and control the water bath's temperature.
  7. Automatically detect and control drag speed.
  8. Data storage, easy to query.
  9. Automatically calculate and display the average ductility value.
Technical specifications
Power supply AC(220±10%)V, 50Hz
Total power consumption ≤5600W
Measurement distance 1.5m(±10mm)
Heating mode Electric heater
Heating Power 4500w
Temperature control mode Shield type cold heat balance pressurization cycle system
Temperature control range (5~50)℃, adjustable. Resolution is 0.01℃
Temperature control accuracy ±0.1℃
Tensile speed 10mm/min and 50mm/min, two grades
Measurement accuracy ±1 mm
Ductility display Display in real time
Ductility record By touching screen
Average ductility When the ductility record is finished, automatically display in the screen
Refrigeration mode Compressor refrigeration
Ambient temperature (15~+35)℃
Relative humidity ≤85%
Dimension 2370mm×520mm×1000mm
Net Weight 285kg
ASTM D113 Automatic Bitumen Ductility Test Machine (Industrial Control)for Highway Engineering 0
FAQ

1.What's the delivery time?
About 20days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
